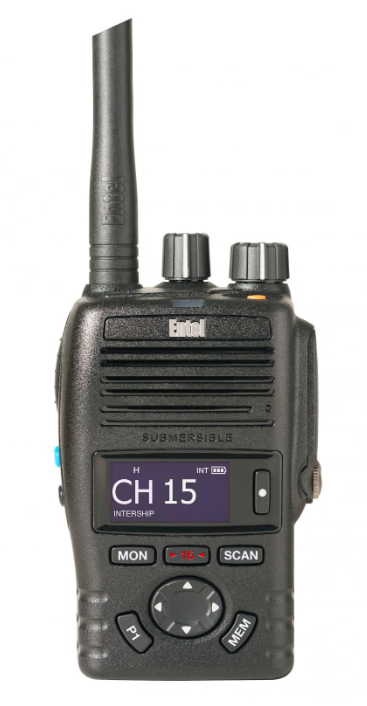

DX600 Series
Products center
| Frequency Range | VHF 156-163MHz |
| Channels | All INT Marine plus private |
| Channel Spacing | 12.5KHz & 25KHz |
| Operating Voltage | 7.6V |
| Frequency stability | ± 0.5ppm |
| Weight | 267g with CNB450E |
| Overall Dimensions (HxWxD) | 97mm x 59.5mm x 37mm |
| Battery Type | 2200 mAh Li-Ion battery pack |
| Duty Cycle (5/5/90 @ 5W)) | 14 hours |
| Operating Temperature | -20° to +55°C |
| Construction | Compliant to MIL-STD 810C/D/E/F |
| IP Rating | IP68 (2 meters depth for 4 hours) |
| Battery care information: | Visit entel.co.uk/battery_care |
| Power Output | 5W(high) / 1W(low) |
| Modulation Limiting | ±2.5KHz / ±5.0KHz |
| FM Hum & Noise | >-40dB / >-45dB |
| Unwanted Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Adjacent Channel Power | >70dBc / >60dBc |
| Audio Response (FM) | 300Hz to 3KHz -6dB /Octave |
| Audio Distortion | <5% |
| FM Modulation | 16K0F3E / 8K0F3E |
| Analogue Sensitivity | -0.25uV (12dB SINAD) |
| Intermodulation response | >68dB |
| Adjacent channel selectivity | >60dB / >70dB |
| Spurious rejection | >70dB |
| Audio Output | 3 Watts |
| Audio distortion | <5% |
| Hum and noise | >-40dB / -45dB |
| Audio response | 300Hz to 3KHz -6dB/Octave |
| Conducted spurious emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
